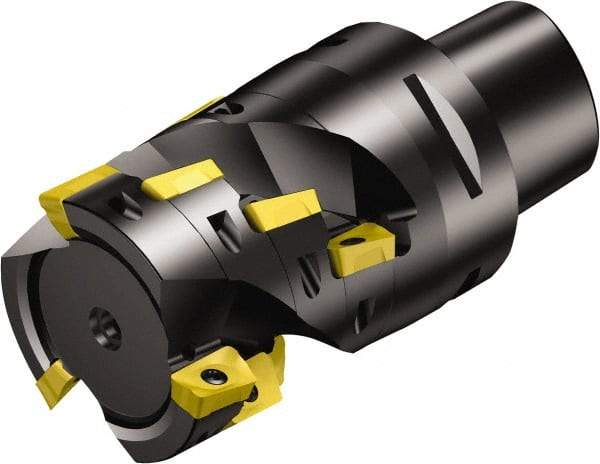

Sandvik Coromant - 3 Inserts, 3" Cut Diam, 3.1496" Arbor Diam, 2.82" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 4.593" High, R390-18.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 54950456
Brand: Sandvik Coromant
Model #: 5739766
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 4.5930 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.8200 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 6100 |
| Cutting Edge Length (Decimal Inch) | 2.8200 |
| ISO Number | RA390076C871L |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
