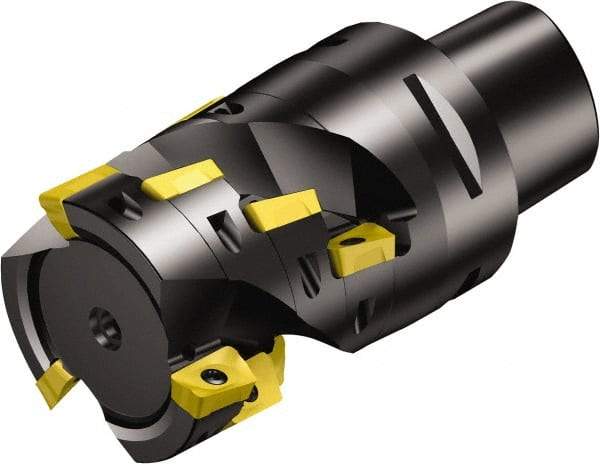

Sandvik Coromant - 4 Inserts, 2-1/2" Cut Diam, 2.4803" Arbor Diam, 1.72" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 3.172" High, R390-18.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 54951652
Brand: Sandvik Coromant
Model #: 5739661
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 3.1720 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 1.7200 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 6800 |
| Cutting Edge Length (Decimal Inch) | 1.7200 |
| ISO Number | RA390063C643M |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
