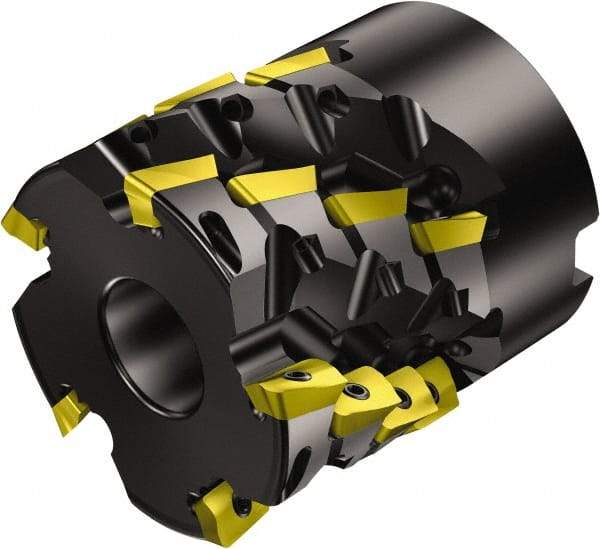

Sandvik Coromant - 3 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 2.13" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.926" High, R390-11.. Insert Compatibility, Series CoroMill 390
Item #: 54951751
Brand: Sandvik Coromant
Model #: 5739657
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.9260 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 2.1300 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 16600 |
| Cutting Edge Length (Decimal Inch) | 2.1300 |
| ISO Number | RA390051R1954M |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
