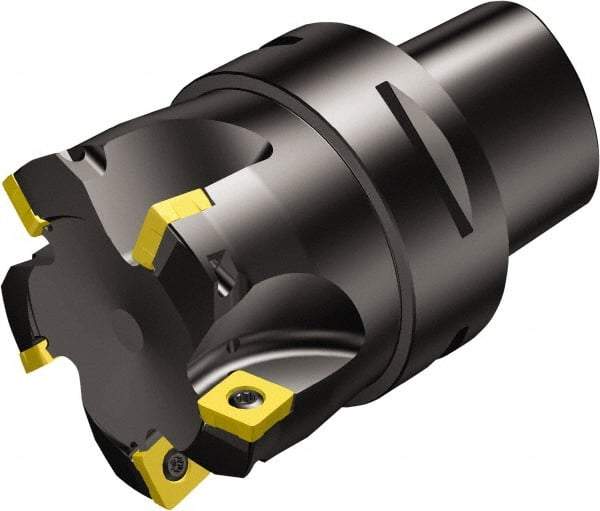

Sandvik Coromant - 3 Inserts, 1.0551" Cut Diam, 1.9685" Arbor Diam, 0.0787" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 3-15/16" High, R210-140512M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 54952072
Brand: Sandvik Coromant
Model #: 5739902
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0551 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Lead Angle | 10 |
| Overall Height (Decimal Inch) | 3.9371 |
| Insert Compatibility | R210-140512M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA210..Cx |
| Maximum Body Diameter (Decimal Inch) | 1.8287 |
| Maximum RPM | 20800 |
| ISO Number | RA210051C514M |
| Complete Insert Compatibility | R210-140512M |
| Toolholder Material | Steel |
