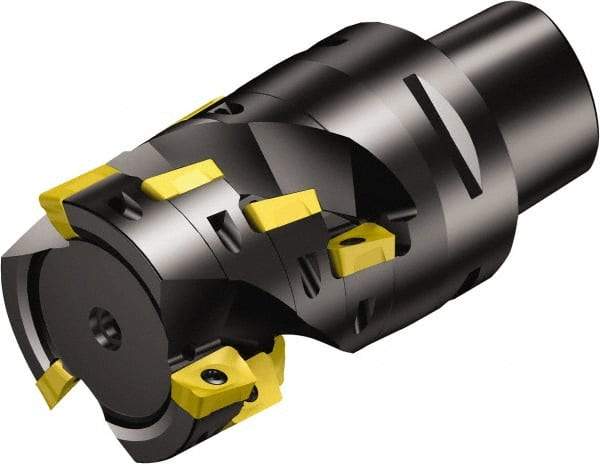

Sandvik Coromant - 3 Inserts, 50mm Cut Diam, 63mm Arbor Diam, 71mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 108.7mm High, R390-18.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 54952163
Brand: Sandvik Coromant
Model #: 5745799
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Overall Height (mm) | 108.70 |
| Overall Height (Decimal Inch) | 4.2795 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 71.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7953 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R390 |
| Maximum RPM | 7900 |
| Cutting Edge Length (Decimal Inch) | 2.7953 |
| ISO Number | R390050C671M |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
