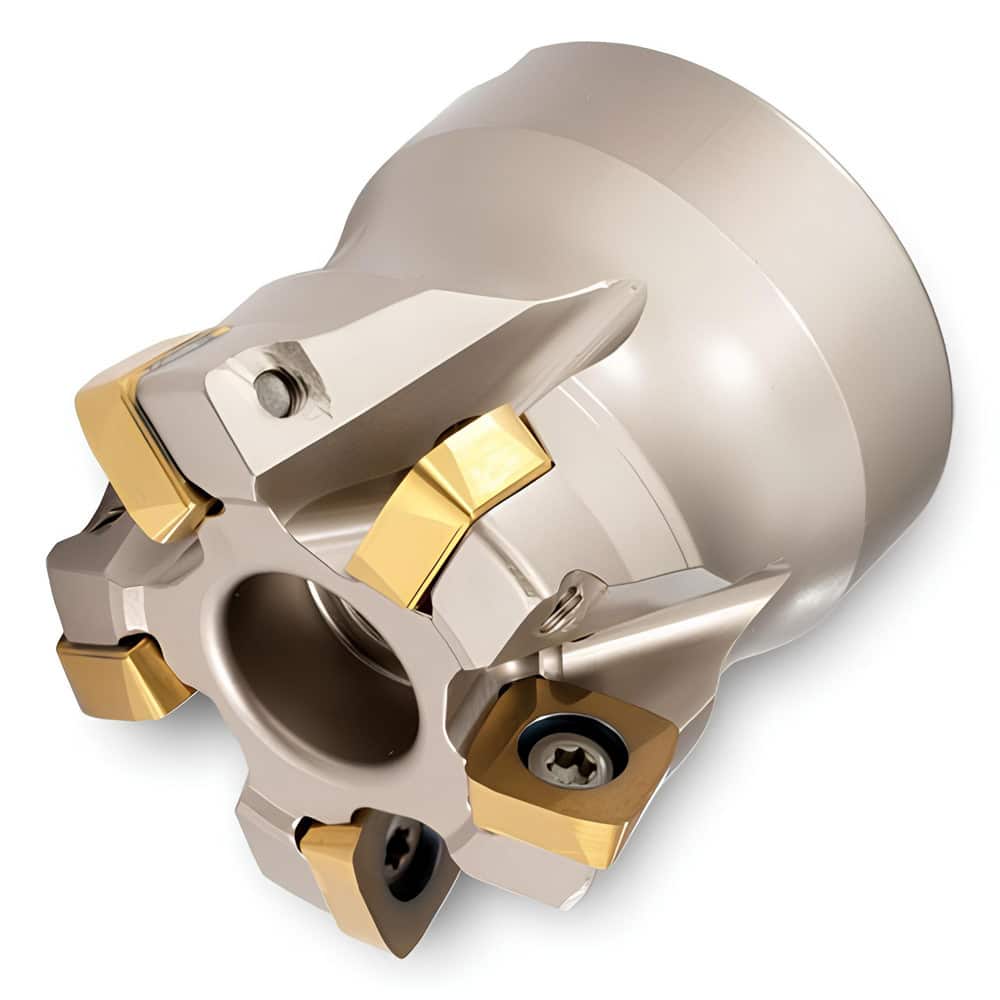

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 1.6700 in; Maximum Cutting Diameter: 2.5000 in; Maximum Depth Of Cut: 0.0780 in; Arbor Hole Diameter (mm): 0.75; Compatible Insert Size Code: 1305; Maximum Ramping Angle: 2.7 ™; Series: 5M6P; Cutt
Item #: 54973904
Brand: Ingersoll Cutting Tools
Model #: 2900613
Product Specifications
| Minimum Cutting Diameter | 1.6700 in |
| Maximum Cutting Diameter | 2.5000 in |
| Maximum Depth Of Cut | 0.0780 in |
| Arbor Hole Diameter (mm) | 0.75 |
| Compatible Insert Size Code | 1305 |
| Maximum Ramping Angle | 2.7 ? |
| Series | 5M6P |
| Cutter Style | 5M6P |
| Number of Cutter Inserts | 5 |
| Through Coolant | Normal Pressure |
| Keyway Width | 7.8700 |
| Overall Height | 2.0000 in |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
