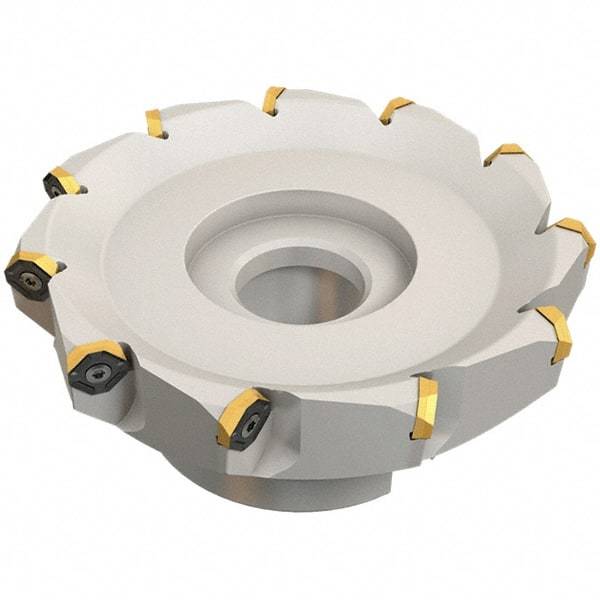

Iscar - 89.4mm Cut Diam, 27mm Arbor Hole, 4.6mm Max Depth of Cut, 50° Indexable Chamfer & Angle Face Mill - 6 Inserts, IQ845 SYHU 07.. Insert, Right Hand Cut, Through Coolant, Series DoveIQMill
Item #: 55059323
Brand: Iscar
Model #: 3106526
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 89.40 |
| Cutting Diameter (Decimal Inch) | 3.5197 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 50 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | IQ845 SYHU 07.. |
| Series | DoveIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | IQ845 FSY-R07 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0315 |
| Counterbore Diameter (Decimal Inch) | 1.4961 |
| Complete Insert Compatibility | IQ845 SYHU 070400ADN; IQ845 SYHU 070400N-MM; IQ845 SYHU 0704ADN; IQ845 SYHU 0704ADN-MM; IQ845 SYHU 0704ADTN |
