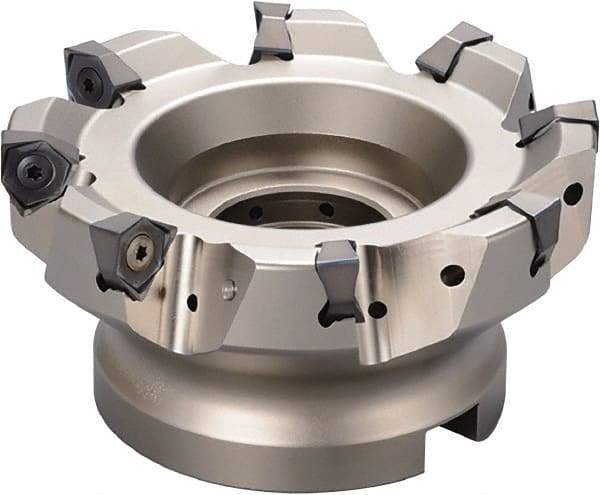

Kyocera - 9 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.315" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 1.968" High, WNMU 0806 Insert Compatibility, Through Coolant, Series M-Six
Item #: 55299226
Brand: Kyocera
Model #: 8606140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.9680 |
| Insert Compatibility | WNMU 0806 |
| Series | M-Six |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | MFWN |
| Number of Flutes | 9 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Depth (Decimal Inch) | 0.3930 |
| Pitch | Extra Fine |
| Counterbore Diameter (Decimal Inch) | 2.0470 |
| Complete Insert Compatibility | WNEU 080608EN-GL; WNMU 080608EN-GH; WNMU 080608EN-GM; WNMU 080608EN-SM |
