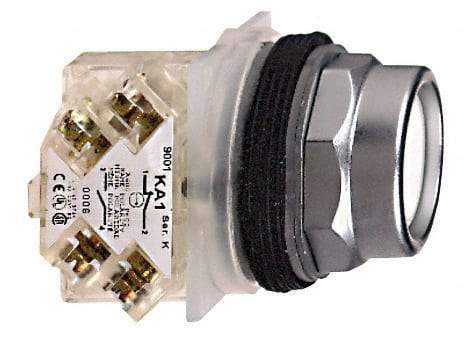

Square D - 30mm Mount Hole, Pushbutton Switch Only - Round, Nonilluminated, Momentary (MO), Shock and Vibration Resistant
Item #: 55489439
Brand: Square D
Model #: 9001KR2UH13
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Shape | Round |
| Operator Illumination | NonIlluminated |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Metal (Bezel) |
| Amperage | 0.55 @ 125 VDC; 3 @ 240 VAC |
| Voltage | 125 VDC; 240 VAC |
| Terminal Type | Screw Clamp |
| NEMA Rating | 1; 2; 3; 4; 12; 13; 3R |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; IEC 60068-2-27; IEC 60068-2-6; JIS C 4520; JIS C 852; UL 508 |
