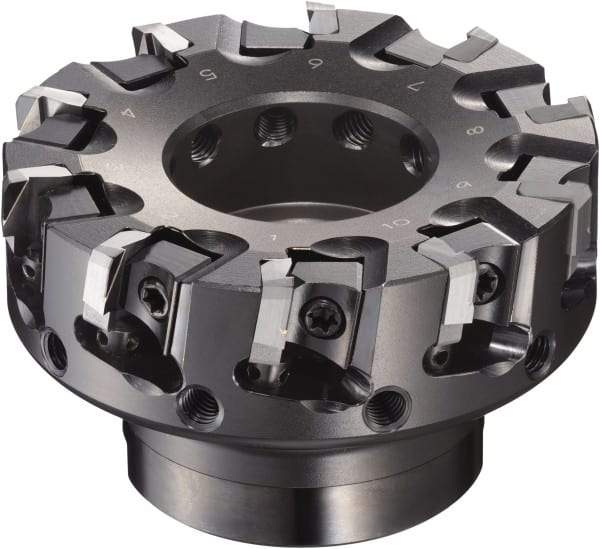

Sumitomo - 100mm Cut Diam, 14.4mm Arbor Hole, 50mm Max Depth of Cut, 90° Indexable Chamfer & Angle Face Mill - 8 Inserts, NF-LDEN Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series HF
Item #: 55720452
Brand: Sumitomo
Model #: 2S00029
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9400 |
| Arbor Hole Diameter (mm) | 14.40 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | NF-LDEN |
| Series | HF |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 50.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HFM |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 4.0200 |
| Maximum RPM | 9500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | NF-LDEN12T3ZD |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Weldon Flat | No |
