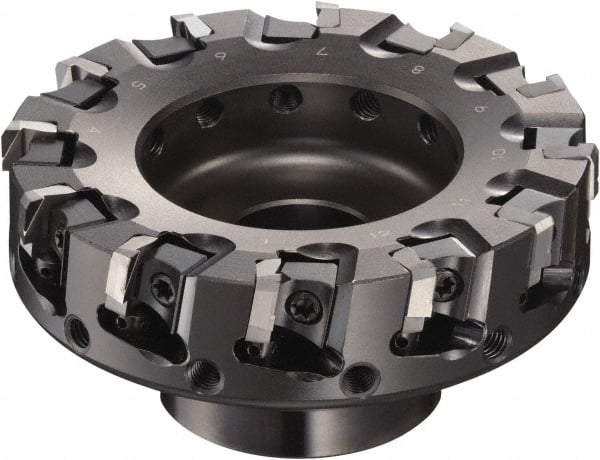

Sumitomo - 125mm Cut Diam, 9.5mm Arbor Hole, 50mm Max Depth of Cut, 90° Indexable Chamfer & Angle Face Mill - 15 Inserts, NF-LDEN Insert, Right Hand Cut, 15 Flutes, Through Coolant, Series HF
Item #: 55720601
Brand: Sumitomo
Model #: 2S00025
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9200 |
| Arbor Hole Diameter (mm) | 9.50 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | NF-LDEN |
| Series | HF |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 50.00 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HFF |
| Number of Flutes | 15 |
| Maximum Body Diameter (Decimal Inch) | 5.0000 |
| Maximum RPM | 7500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | NF-LDEN12T3ZD |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Weldon Flat | No |
