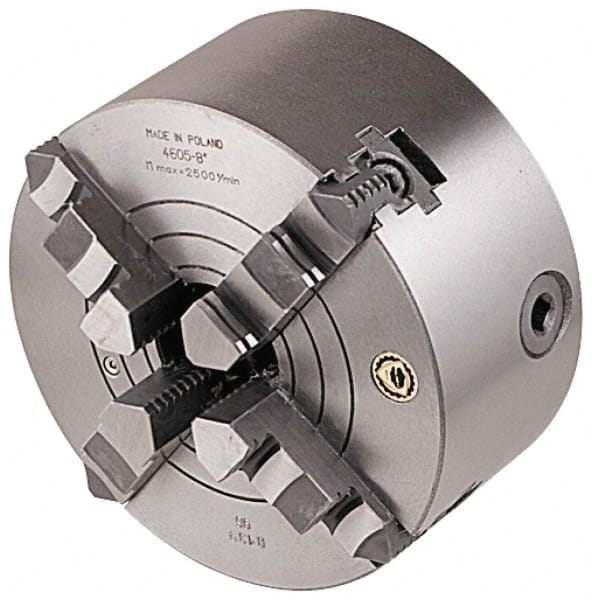

Bison - Manual Lathe Chucks Chuck Type: Combination Independent & Self-Centering Nominal Chuck Size: 25
Item #: 08761520
Brand: Bison
Model #: 7-848-2500
Features and Benefits
Combination independent and self-centering chucks allow each jaw to be operated independently or move simultaneously as a self-centering scroll chuck.
Cast iron also called semi-steel is the industry standard for chuck body material.
Product Specifications
Manual Lathe Chucks; Chuck Type: Combination Independent & Self-Centering ; Nominal Chuck Size: 25 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 9.2100 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Combination Independent & Self-Centering |
| Nominal Chuck Size | 25 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 9.2100 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 25 |
| Minimum Jaw Capacity (Decimal Inch) | 1.1800 |
| Maximum Jaw Capacity (Inch) | 25 |
| Adjustable | No |
| Body Length (Decimal Inch) | 6.2992 |
| Maximum RPM | 350 |
| Includes | Set of Hard Solid Reversible Jaws; Set of Mounting Screws; Wrench |
