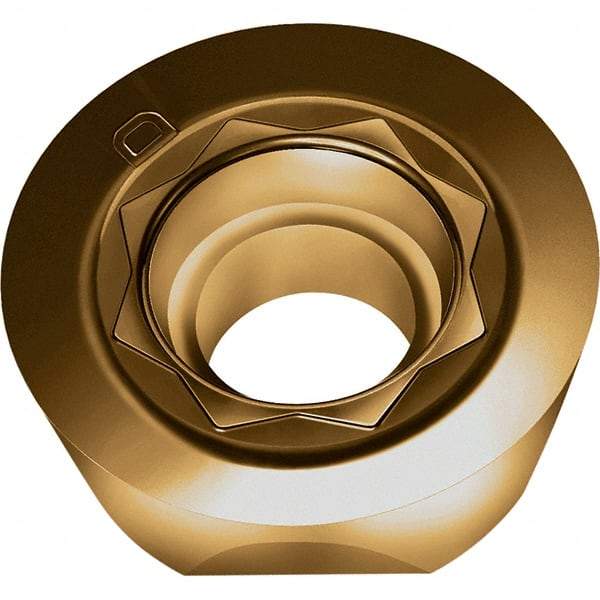

Walter - ROHX1204M0 D67 Grade W3536 Carbide Milling Insert - 0.1874" Thick, 0.4705" Inscribed Circle
Item #: 56099427
Brand: Walter
Model #: 6111194
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ROHX |
| Insert Size | 1204M0 |
| Material | Carbide |
| Manufacturer's Grade | W3536 |
| Inscribed Circle (Decimal Inch) | 0.4705 |
| Thickness (Decimal Inch) | 0.1874 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Shape | Round |
| Chipbreaker | D67 |
| Manufacturers Catalog Number | ROHX1204M0-D67 |
