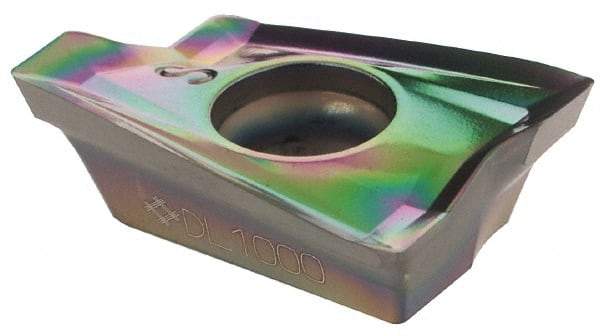

Sumitomo - AXET170504 Grade DL1000 Carbide Milling Insert - 0.219" Thick, 0.016" Corner Radius
Item #: 56224249
Brand: Sumitomo
Model #: 14EK324
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AXET |
| Insert Size | 170504 |
| Material | Carbide |
| Manufacturer's Grade | DL1000 |
| Width (Decimal Inch) | 0.4020 |
| Length (Decimal Inch) | 0.6890 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 11.000 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutter Series Compatibility | WEX3000 CUTTER SERIES |
