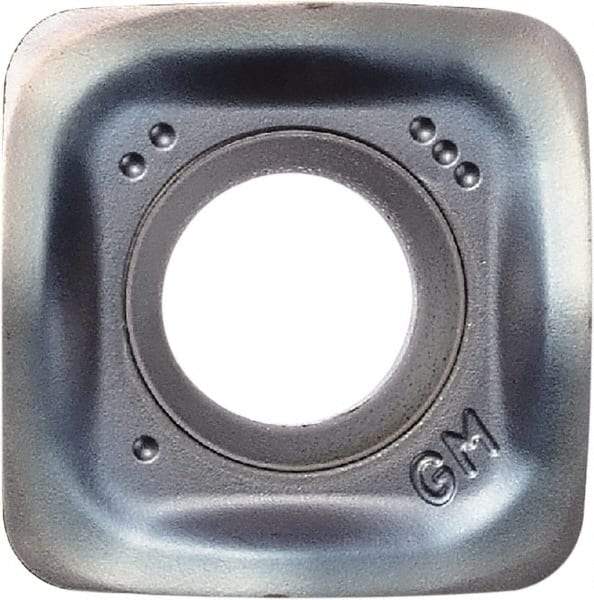

Kyocera - SOMT140520 Grade PR1535 Carbide Milling Insert - Megacoat Nano Finish, 7/32" Thick, 14.14mm Inscribed Circle, 5/64" Corner Radius
Item #: 56306830
Brand: Kyocera
Model #: 8838815
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 140520 |
| Material | Carbide |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Width (mm) | 14.14 |
| Width (Decimal Inch) | 0.5567 |
| Inscribed Circle (mm) | 14.14 |
| Inscribed Circle (Decimal Inch) | 0.5567 |
| Thickness (mm) | 5.56 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 5.80 |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Relief Angle | 16.000 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed |
