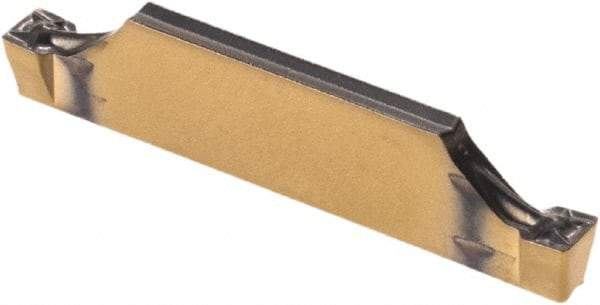

Iscar - 2002HFPN Grade IC808, 2mm Cutting Width Carbide Grooving Insert - 0.2mm Corner Radius, TiN/TiAlN Finish
Item #: 56368020
Brand: Iscar
Model #: 6200468
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HFPN |
| Insert Size | 2002 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Cutting Direction | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Face Turning |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 19.40 |
| Overall Length (Decimal Inch) | 0.7638 |
| Series | Heliface |
| Manufacturers Catalog Number | HFPN 2002 |
