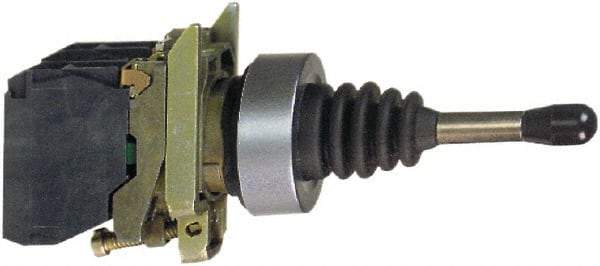

Schneider Electric - 5 Position, Multiple Amp Level, 54mm Long, -13 to 158°F, Round Handle, Maintained (MA) Joystick Controller Switch - IP66, 22mm Mount Hole Diameter - Eagle Tool & Supply

Schneider Electric - 5 Position, Multiple Amp Level, 54mm Long, -13 to 158°F, Round Handle, Maintained (MA) Joystick Controller Switch - IP66, 22mm Mount Hole Diameter


Item #: 56656168
Brand: Schneider Electric
Model #: XD4PA14
Exact Tooling IR#: 04

Product Specifications
Switch Type Controller
Mounting Hole Diameter (mm) 22
Operation Type Maintained (MA)
Contact Configuration NO
Number of Operator Positions 5
Joystick Handle Shape Round
Terminal Type Screw
Amperage 0.10; 0.22; 0.10 @ 250 VDC; 0.22 @ 125 VDC
NEMA Rating 13; 4X
Ingress Protection Rating IP66
Contact Plating Silver Alloy
Bezel Material Metal
Maximum Operating Temperature (F) 158
Minimum Operating Temperature (F) -13
Actuator Length (mm) 54
Standards Met Bureau Veritas; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-5-5; GL; JIS C 4520; LROS; RINA; UL 508; UL Listed
$480.00
