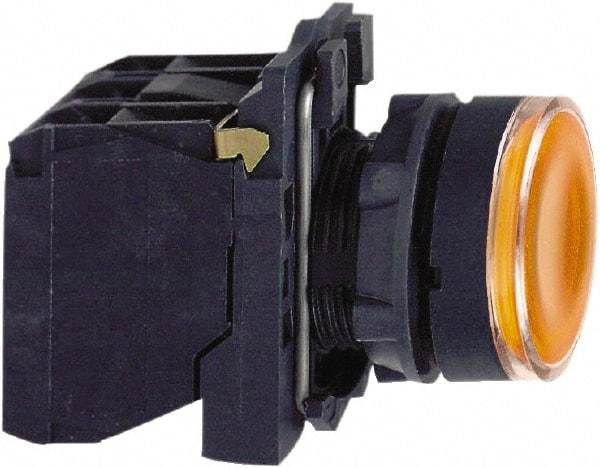

Schneider Electric - 22mm Mount Hole, Flush, Pushbutton Switch with Contact Block - Round, Orange Pushbutton, Illuminated, Momentary (MO)
Item #: 56679343
Brand: Schneider Electric
Model #: XB5AW3565
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches with contact blocks are designed to activate machinery by button that is pressed and released. The contact block controls the flow of electricity through the switch.
Illuminated pushbuttons offer a light within the button fo added safety in darker areas.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 22 |
| Switch Type | Pushbutton Switches with Contact Blocks |
| Pushbutton Type | Flush |
| Pushbutton Shape | Round |
| Pushbutton Color | Orange |
| Operator Illumination | Illuminated |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Plastic |
| Amperage | 0.10 @ 600 VDC; 0.27 @ 250 VDC; 0.55 @ 125 VDC; 1.20 @ 600 VAC; 3 @ 240 VAC; 6 @ 120 VAC |
| Voltage | 120 VAC @ 6 A; 125 VDC @ 0.55 A; 240 VAC @ 3 A; 250 VDC @ 0.27 A; 600 VAC @ 1.20 A; 600 VDC @ 0.10 A |
| Contact Configuration | NC/NO |
| Terminal Type | Screw |
| NEMA Rating | 13; 4X |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; UL 508 |
