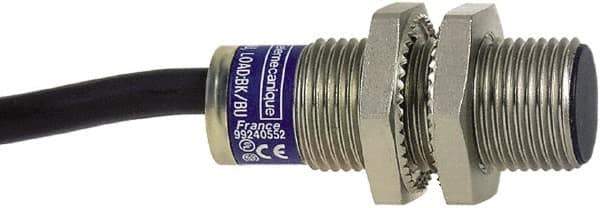

Telemecanique Sensors - NPN, NO/NC, 2mm Detection, Cylinder, Inductive Proximity Sensor - 4 Wires, IP68, 12 to 24 VDC, M12x1 Thread, 33mm Long
Item #: 56688419
Brand: Telemecanique Sensors
Model #: XS1N12NC410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO/NC |
| Output Type | NPN |
| Connector Type | Cable |
| Number of Wires | 4 |
| Detection Distance (mm) | 2.00 |
| Maximum Voltage | 12-24 VDC |
| Ingress Protection Rating | IP68 |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 5000 |
| Thread Size | M12x1 |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 33 |
| Standards Met | CSA; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
