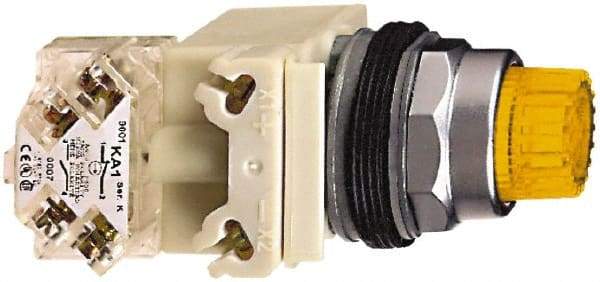

Schneider Electric - 1.22 Inch Mount Hole, Extended Mushroom Head, Pushbutton Switch with Contact Block - Round, Amber Pushbutton, Illuminated, Momentary (MO), Dusttight, Oiltight, Watertight and Shock and Vibration Resistant
Item #: 56724453
Brand: Schneider Electric
Model #: 9001K2L35A21H13
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches with contact blocks are designed to activate machinery by button that is pressed and released. The contact block controls the flow of electricity through the switch.
Illuminated pushbuttons offer a light within the button fo added safety in darker areas.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 31 |
| Mounting Hole Diameter (Decimal Inch) | 1.2200 |
| Switch Type | Pushbutton Switches with Contact Blocks |
| Pushbutton Type | Extended (Mushroom Head) |
| Pushbutton Shape | Round |
| Pushbutton Color | Amber |
| Operator Illumination | Illuminated |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Plastic |
| Amperage | 10 |
| Voltage | 24-28 VAC/VDC (Light Module); 600 VAC/VDC |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Clamp |
| NEMA Rating | 1; 2; 3; 4; 6; 12; 13; 3R |
| Resistance Features | Dust-tight; Oiltight; Shock Resistant; Vibration Resistant; Watertight |
| Lamp Type | Incandescent |
| Standards Met | CE Marked; CSA C22.2; CSA No. LR25490 Class 3211 03; CSA No. LR26817 Class 3218 02; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; JIS C 852; RoHS Compliant; UL 508; UL No. E10054 CCN NOIV; UL No. E42259 CCN NKCR; UL No. E78403 CCN NKCR |
