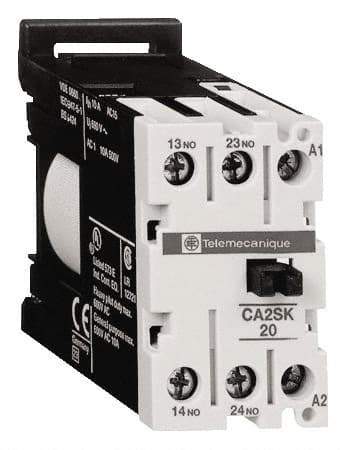

Schneider Electric - 2NO, 110 VAC at 50/60 Hz Control Relay - DIN Rail Mount
Item #: 56832504
Brand: Schneider Electric
Model #: CA2SK20F7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Coil Voltage | 110 VAC @ 50/60 Hz |
| Contact Configuration | 2NO |
| Control Circuit Type | AC 50/60 Hz |
| Mounting Type | DIN Rail Mount |
| Terminal Type | Screw |
| Ingress Protection Rating | IP2X |
| Maximum Operating Temperature (F) | 122 |
| Minimum Operating Temperature (F) | -4 |
| Overall Height (mm) | 56 |
| Overall Width (mm) | 27 |
| Overall Depth (mm) | 55-1/2 |
| Standards Met | BS 5424; CSA; IEC 60068; IEC 60947; NF C 63-110; UL Listed; VDE 0660 |
