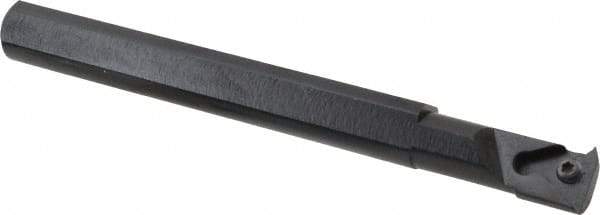

Seco - Internal Thread, Right Hand Cut, 3/4" Shank Width x 0.691" Shank Height Indexable Threading Toolholder - 7" OAL, 22NR Insert Compatibility, SN Toolholder, Series Snap Tap
Item #: 57139586
Brand: Seco
Model #: 72314
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.6910 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | 22NR |
| Series | Snap Tap |
| Toolholder Style | SN |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4920 |
| Center to Cutting Edge (Decimal Inch) | 0.4920 |
| Head Length (Decimal Inch) | 2.0000 |
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Minimum Bore Diameter (Decimal Inch) | 0.9000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
