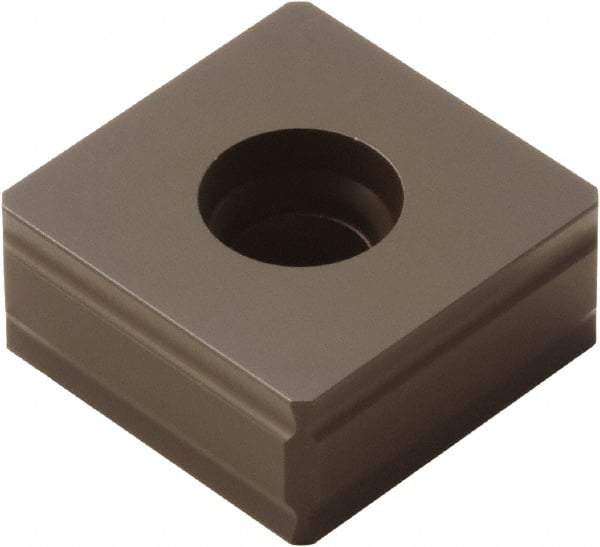

Seco - SNHX1106 M11 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 1/4" Inscribed Circle
Item #: 57487118
Brand: Seco
Model #: 63854
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHX |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.2500 |
| Coating Process | CVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M11 |
| Manufacturers Catalog Number | SNHX 1106TN8-M11 |
