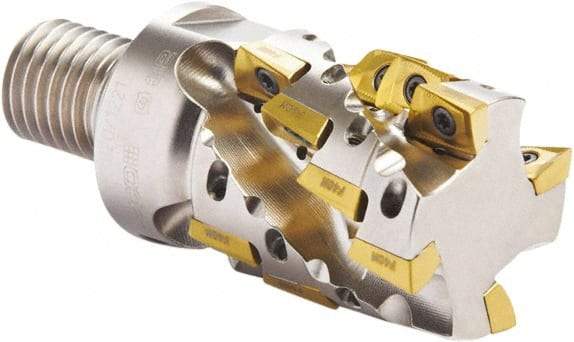

Seco - 1" Cut Diam, 1.65" Max Depth of Cut, 1" Shank Diam, 4-1/2" OAL, Indexable Square Shoulder Helical End Mill - XO.X 10T3 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 57490906
Brand: Seco
Model #: 81642
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 4.5000 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.6500 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.0600 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.X 10T3 |
| Shank Length (Decimal Inch) | 2.4200 |
| Maximum RPM | 23500 |
