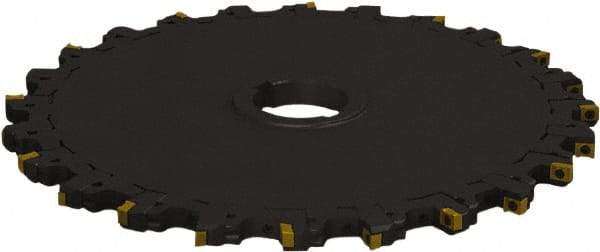

Seco - Arbor Hole Connection, 0.4724" Cutting Width, 4.764" Depth of Cut, 315mm Cutter Diam, 1.9685" Hole Diam, 12 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 08.. Insert
Item #: 57491649
Brand: Seco
Model #: 58983
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 121.01 |
| Maximum Depth of Cut (Decimal Inch) | 4.7640 |
| Cutter Diameter (mm) | 315.00 |
| Cutter Diameter (Decimal Inch) | 12.4016 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 12 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 08.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Maximum RPM | 5300 |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.5906 |
| Maximum Cutting Width (mm) | 15.00 |
| Radius | No |
| Cutter Body Width (mm) | 15.00 |
| Cutter Body Width (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility1 | LNKT 080504PPN-E05; LNKT 080504PPTN-M06; LNKT 080504PPTN4-M06; LNKT 080508PPN-E05; LNKT 080508PPTN-M06; LNKT 080508PPTN4-M06; LNKT 080516PPN-E05; LNKT 080516PPTN-M06; LNKT 080520PPN-E05; LNKT 080520PPTN-M06; LNKT 080524PPN-E05; LNKT 080524PPTN-M06 |
