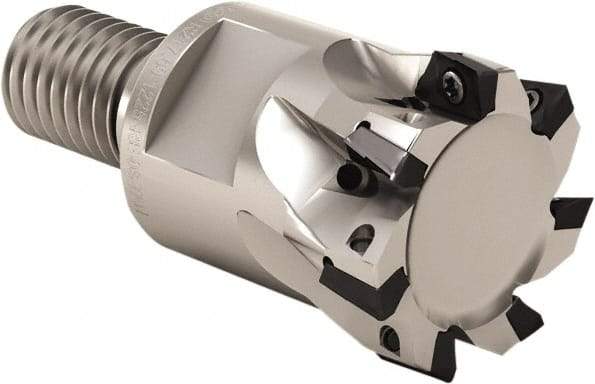

Seco - 32mm Cut Diam, 5mm Max Depth of Cut, 35mm OAL, Indexable Square Shoulder End Mill - XO.. 0602 Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant, Series Nano Turbo
Item #: 57495160
Brand: Seco
Model #: 53203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 35.00 |
| Overall Length/Projection (Decimal Inch) | 1.3780 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.. 0602 |
| Maximum RPM | 33600 |
