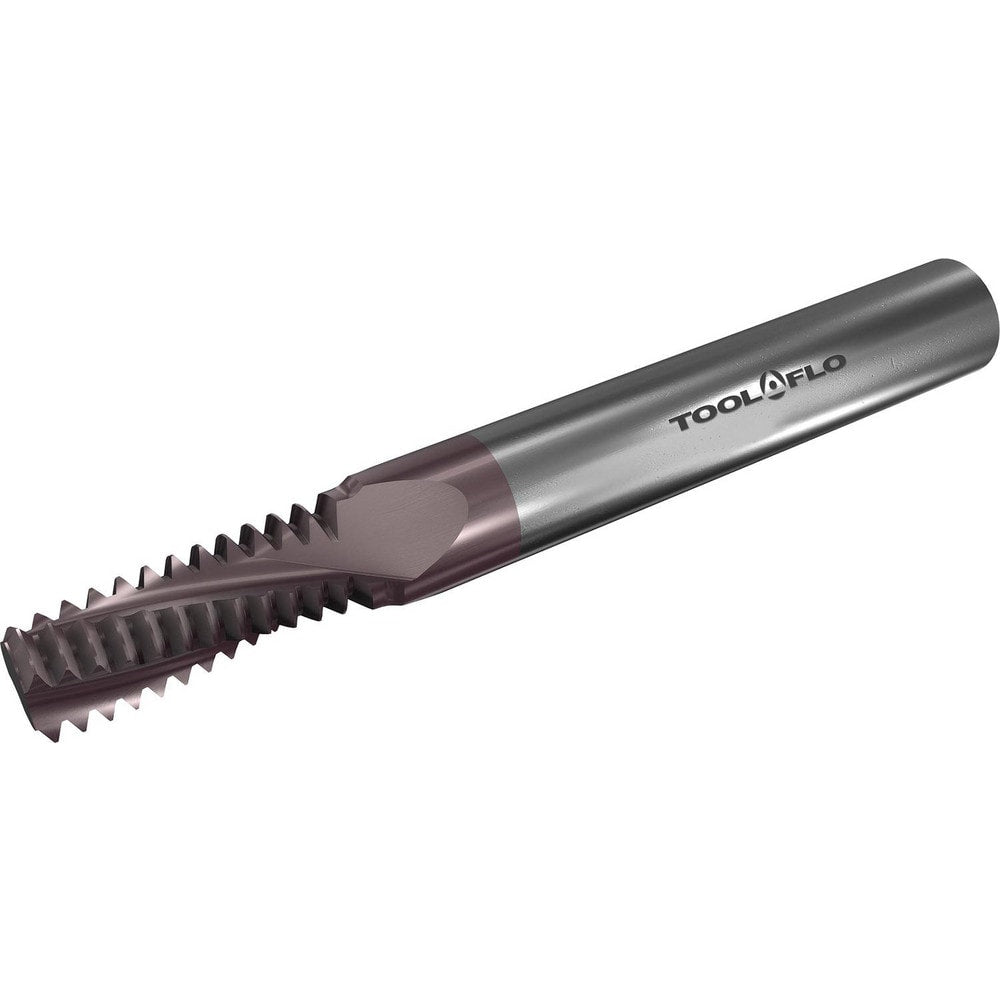

Helical Flute Thread Mill: 3/4-20 - 1-20, Internal, 5 Flute, 1/2" Shank Dia, Solid Carbide
Item #: 02356947
Brand: Tool-Flo
Model #: 2468775
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | 3/4-20 - 1-20 |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0700 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Standard | UN |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 20 |
| UNSPSC Code | 23242117 |
