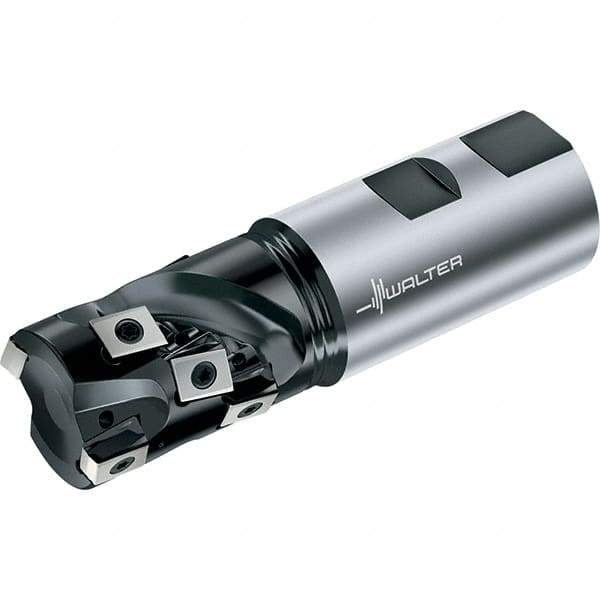

Walter - 32mm Cut Diam, 40.01mm Max Depth of Cut, 32mm Shank Diam, 111mm OAL, Indexable Square Shoulder Helical End Mill - LN.U0904..R Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series F5038
Item #: 58276197
Brand: Walter
Model #: 6515234
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Overall Length/Projection (mm) | 111.00 |
| Overall Length/Projection (Decimal Inch) | 4.3700 |
| Lead Angle | 90 |
| Series | F5038 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 40.01 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | Yes |
| Insert Compatibility | LN.U0904..R |
| Maximum RPM | 35000 |
| Toolholder Material | Tool Steel |
