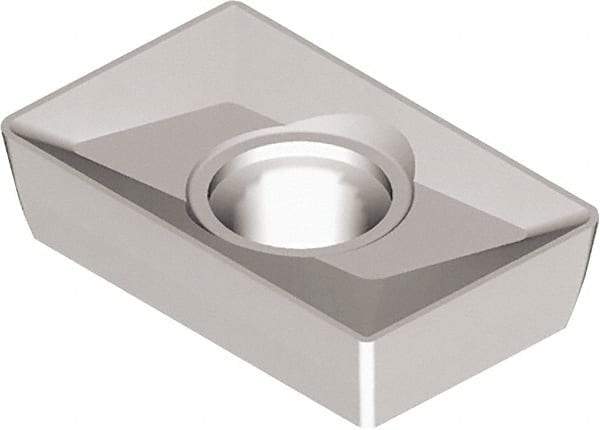

Kyocera - XPMT090208 Grade PR1525 Carbide Milling Insert - Megacoat Nano Finish, 0.094" Thick, 1/4" Inscribed Circle, 0.031" Corner Radius
Item #: 59161190
Brand: Kyocera
Model #: 8850717
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMT |
| Insert Size | 090208 |
| Material | Carbide |
| Manufacturer's Grade | PR1525 |
| Coating | Megacoat Nano |
| Width (Decimal Inch) | 0.2500 |
| Length (Decimal Inch) | 0.3250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | XPMT090208 |
