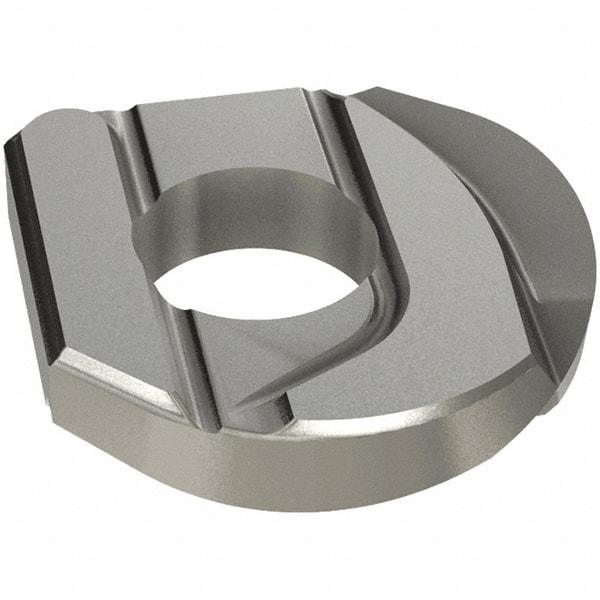

Iscar - HCRD.62 QF Grade IC328 Carbide Milling Insert - TiCN Finish, 0.132" Thick, 5/8" Inscribed Circle, 5/16" Corner Radius
Item #: 59460212
Brand: Iscar
Model #: 5604299
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCR |
| Insert Size | D.62 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.1320 |
| Corner Radius (Decimal Inch) | 0.3120 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Chipbreaker | QF |
| Maximum Depth of Cut (Decimal Inch) | 0.4450 |
| ISO Number | HCR D.62-QF |
