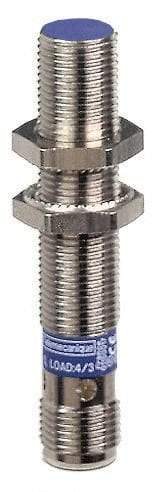

Telemecanique Sensors - 4mm Detection, Cylinder Shielded, Inductive Proximity Sensor - 2 Wires, IP67, IP69K, 24 to 240 VAC/VDC, M12x1 Thread, 2.44 Inch Long
Item #: 59758219
Brand: Telemecanique Sensors
Model #: XS612B1MAU20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NO |
| Output Type | NO |
| Connector Type | 3-pin 1/2-20 UNF |
| Number of Wires | 2 |
| Detection Distance (mm) | 4.00 |
| Detection Distance (Decimal Inch) | 0.1600 |
| Sensor Head Size | M12 |
| Maximum Voltage | 24-240 VAC/VDC |
| Ingress Protection Rating | IP67; IP69K |
| Maximum Load Capacity (mA) | 300 |
| Response Frequency (Hz) | 1000 |
| Thread Size | M12x1 |
| Housing Material | Nickel Plated Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 62 |
| Overall Length (Decimal Inch) | 2.4400 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed |
