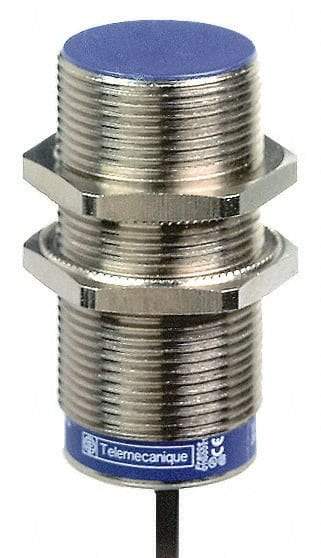

Telemecanique Sensors - 15mm Detection, Cylinder Shielded, Inductive Proximity Sensor - 2 Wires, IP68, IP69K, 24 to 240 VAC/VDC, M30x1.5 Thread, 2.44 Inch Long
Item #: 59758276
Brand: Telemecanique Sensors
Model #: XS630B1MAL2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NO |
| Output Type | NO |
| Connector Type | Cable |
| Number of Wires | 2 |
| Detection Distance (mm) | 15.00 |
| Detection Distance (Decimal Inch) | 0.5900 |
| Sensor Head Size | M30 |
| Maximum Voltage | 24-240 VAC/VDC |
| Ingress Protection Rating | IP68; IP69K |
| Maximum Load Capacity (mA) | 300 |
| Response Frequency (Hz) | 500 |
| Thread Size | M30x1.5 |
| Housing Material | Nickel Plated Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 62 |
| Overall Length (Decimal Inch) | 2.4400 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed |
