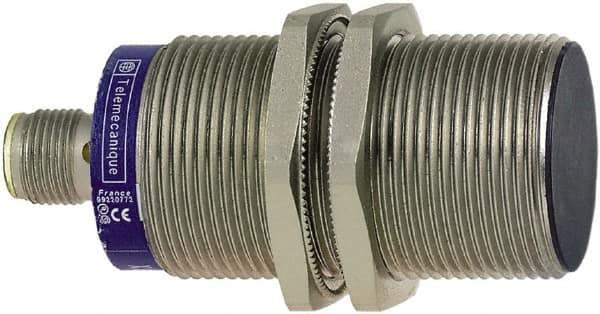

Telemecanique Sensors - NPN, 10mm Detection, Cylinder Shielded, Inductive Proximity Sensor - 3 Wires, IP67, IP69K, 12 to 24 VDC, M30x1.5 Thread, 55mm Long x 1.18 Inch Wide
Item #: 59758698
Brand: Telemecanique Sensors
Model #: XS530B1NAM12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NO |
| Output Type | NPN |
| Connector Type | 4-pin M12 |
| Number of Wires | 3 |
| Detection Distance (mm) | 10.00 |
| Detection Distance (Decimal Inch) | 0.3900 |
| Sensor Head Size | M30 |
| Maximum Voltage | 12-24 VDC |
| Overall Width/Diameter (mm) | 30 |
| Overall Width/Diameter (Decimal Inch) | 1.1800 |
| Ingress Protection Rating | IP67; IP69K |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 1000 |
| Thread Size | M30x1.5 |
| Housing Material | Nickel Plated Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 55 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed |
