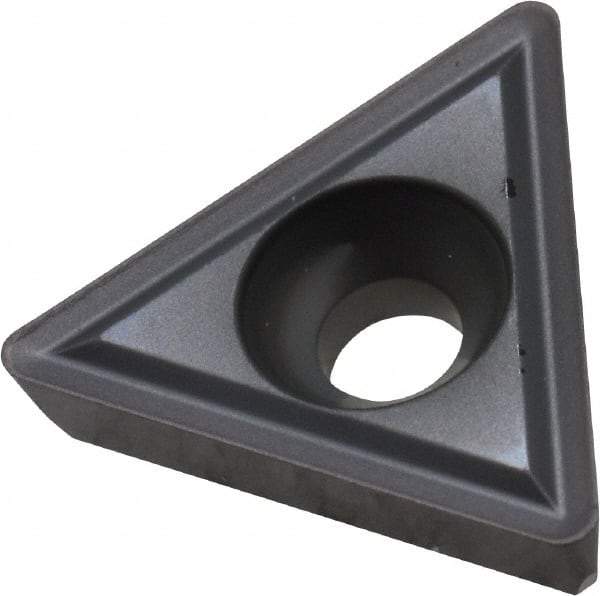

Kennametal - TPGH322 Grade KC5010 Carbide Boring Insert - TiC/TiCN/TiN Finish, 60° Triangle, 11° Relief Angle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 59875856
Brand: Kennametal
Model #: 1937645
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TPGH |
| Insert Size | 322 |
| Manufacturer's Grade | KC5010 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1270 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating | TiC/TiCN/TiN |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Coating Process | CVD |
| Shape | Triangle |
