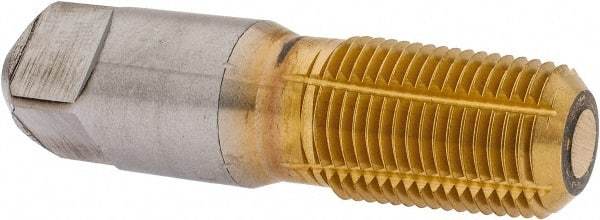

Hertel - 3/8-18 NPT, TiN Coated, High Speed Steel, Thread Forming Pipe Tap - 2-9/16 Inch Overall Length, 1-1/16 Inch Thread Length, 0.7 Inch Shank Diameter, 0.531 Inch Square Size
Item #: 59916486
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
NPT (National Pipe Taper) refers to American National Standard Taper Pipe Threads. They are commonly used for general purpose applications and require a sealant.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-18 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Overall Length (Inch) | 2-9/16 |
| Thread Length (Inch) | 1-1/16 |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Size (Decimal Inch) | 0.5310 |
