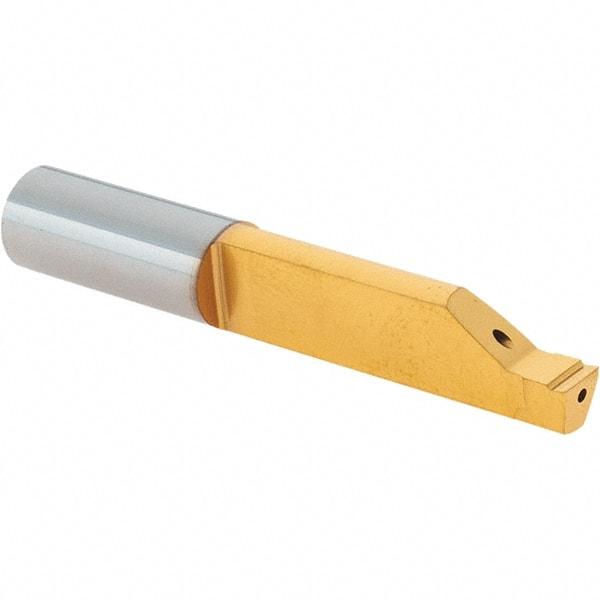

Iscar - 4mm Groove Width, 20mm Min Hole Diam, 30mm Max Hole Depth, Face Grooving Tool - 50mm OAL, Solid Carbide, TiAlN/TiN Finish
Item #: 59934943
Brand: Iscar
Model #: 6404156
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Groove Width (Decimal Inch) | 0.1575 |
| Groove Width (mm) | 4.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Minimum Hole Diameter (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 1.1811 |
| Maximum Hole Depth (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Finish/Coating | TiAlN/TiN |
| Manufacturer Grade | IC1008 |
