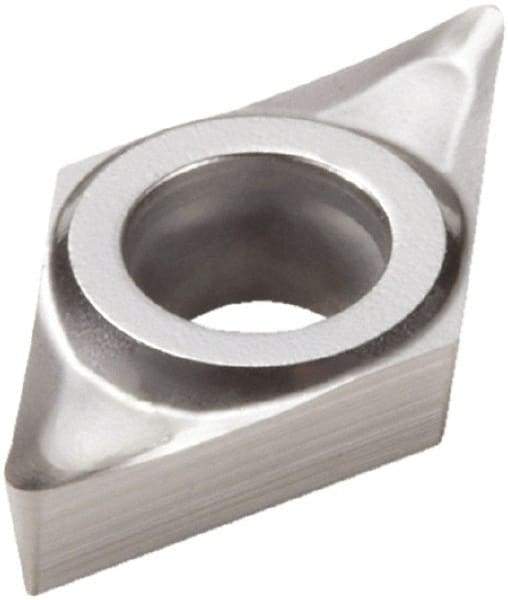

Seco - DCGT21.50.5 AL Grade KX Carbide Turning Insert - Uncoated, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/128" Corner Radius
Item #: 60116639
Brand: Seco
Model #: 07603
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | KX |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Chip Breaker | AL |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Relief Angle | 7 |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.1600 |
| Insert Holding Method | Screw |
| Shape | Diamond |
