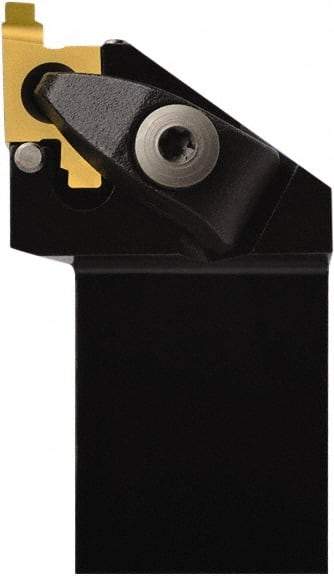

Seco - External Thread, Right Hand Cut, 24.99mm Shank Width x 32mm Shank Height Indexable Threading Toolholder - 170mm OAL, 26ER Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 60133048
Brand: Seco
Model #: 02792
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 24.99 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (Decimal Inch) | 6.6930 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | 26ER |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.01 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5750 |
| Head Length (mm) | 43.99 |
| Head Length (Decimal Inch) | 1.7320 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
