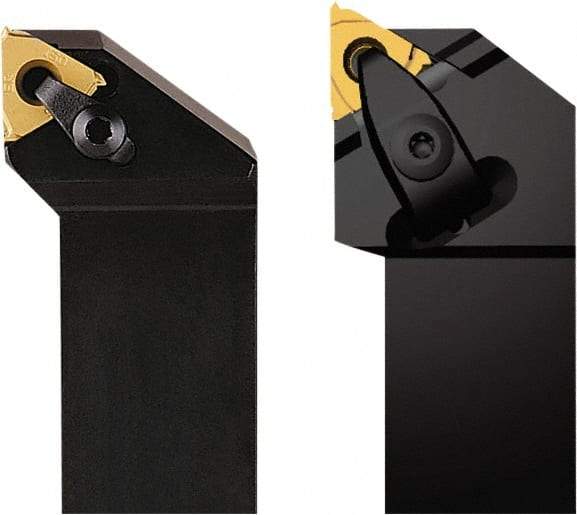

Seco - External Thread, Left Hand Cut, 32mm Shank Width x 32mm Shank Height Indexable Threading Toolholder - 170mm OAL, 27EL Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 60135605
Brand: Seco
Model #: 09736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2600 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2600 |
| Overall Length (Decimal Inch) | 6.6930 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | 27EL |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.01 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5750 |
| Head Length (mm) | 43.99 |
| Head Length (Decimal Inch) | 1.7320 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
