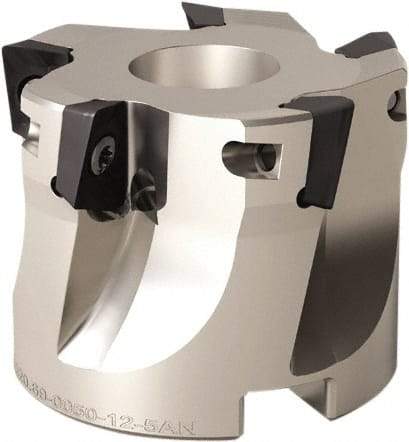

Seco - 5 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 9mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, XOMX 10T3 Insert Compatibility, Through Coolant, Series Turbo 10
Item #: 60142221
Brand: Seco
Model #: 68011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | XOMX 10T3 |
| Series | Turbo 10 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -4 |
| Rake | Negative |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 16600 |
| Pitch | Normal |
| Complete Insert Compatibility | XOMX 10T304TR-M09; XOMX 10T304TR-ME07; XOMX 10T308TR-M09; XOMX 10T308TR-ME07 |
