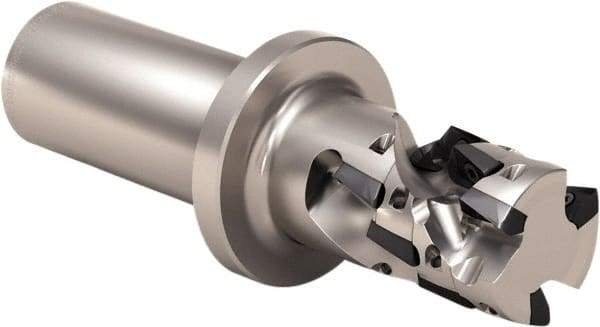

Seco - 25mm Cut Diam, 22mm Max Depth of Cut, 20mm Shank Diam, 99.5mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1204 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 60143351
Brand: Seco
Model #: 58503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Overall Length/Projection (mm) | 99.50 |
| Overall Length/Projection (Decimal Inch) | 3.9173 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.. 1204 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Maximum RPM | 20800 |
