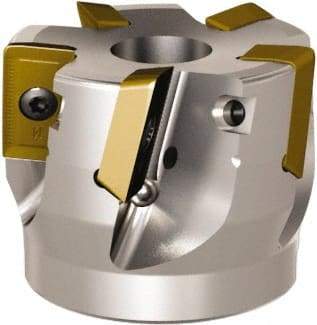

Seco - 6 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 20mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 50mm High, ABEX 26.. Insert Compatibility, Through Coolant
Item #: 60143955
Brand: Seco
Model #: 71037
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | ABEX 26.. |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -14 |
| Rake | Negative |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum RPM | 6700 |
| Pitch | Close |
| Complete Insert Compatibility | ABEX 2606ZFFR-M15; ABEX 2606ZZFR-M15 |
