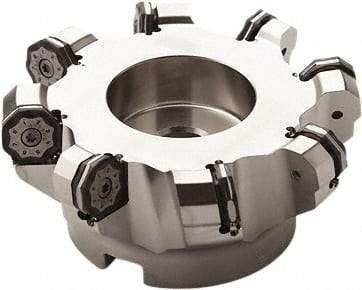

Seco - 78mm Cut Diam, 22mm Arbor Hole, 6mm Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 5 Inserts, ON.. 0905 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Double OctoMill
Item #: 60147188
Brand: Seco
Model #: 49811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 78.00 |
| Cutting Diameter (Decimal Inch) | 3.0709 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | ON.. 0905 |
| Series | Double OctoMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Cutting Rake Angle | -11 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Hub Diameter (mm) | 47.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum Body Diameter (Decimal Inch) | 2.4803 |
| Maximum RPM | 4900 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | ONEF 090520ZZTN-M14; ONEU 090520ZZTN4-M14; ONMF 090520ANTN-M14; ONMF 090520ANTN-MD16; ONMU 090520ANTN-M12; ONMU 090520ANTN-M13; ONMU 090520ANTN-M14; ONMU 090520ANTN-M15; ONMU 090520ANTN-MD16; ONMU 090520ANTN-MD17; ONMU 090520ANTN-ME12; ONMU 090520ANTN-ME1 |
