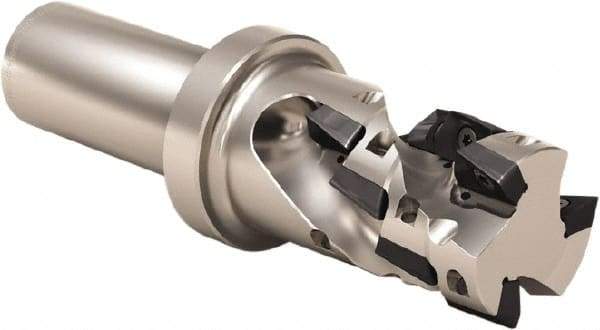

Seco - 50mm Cut Diam, 47mm Max Depth of Cut, 32mm Shank Diam, 134.5mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1806 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Power Turbo
Item #: 60150893
Brand: Seco
Model #: 58533
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Overall Length/Projection (mm) | 134.50 |
| Overall Length/Projection (Decimal Inch) | 5.2953 |
| Lead Angle | 90 |
| Series | Power Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 47.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8504 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 75.00 |
| Head Length (Decimal Inch) | 2.9528 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.. 1806 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
| Maximum RPM | 8900 |
