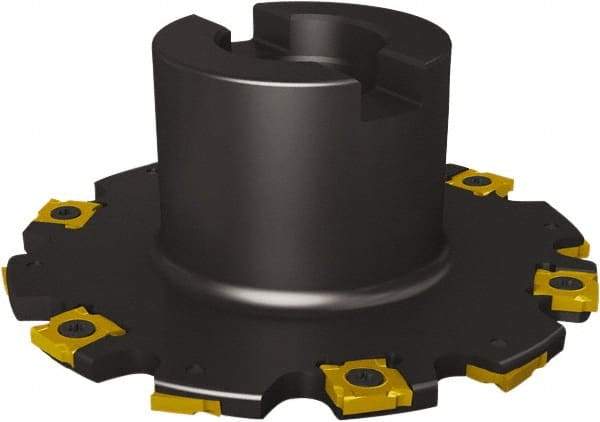

Seco - Shell Mount Connection, 0.2362" Cutting Width, 0.5472" Depth of Cut, 63mm Cutter Diam, 0.8661" Hole Diam, 3 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1203 Insert, Right Hand Cutting Direction
Item #: 60152154
Brand: Seco
Model #: 11448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 13.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.5472 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 3 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1203 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 10900 |
| Minimum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (mm) | 6.00 |
| Hub Diameter (mm) | 40.00 |
| Hub Diameter (Decimal Inch) | 1.5748 |
| Radius | No |
| Rake | Negative |
| Complete Insert Compatibility1 | SNHQ 120302EL4-E05; SNHQ 120302ER4-E05; SNHQ 120302TL4-M07; SNHQ 120302TR4-M07; SNHQ 120304TL4-M07; SNHQ 120304TR4-M07; SNHQ 120308TL4-M07; SNHQ 120308TR4-M07; SNHQ 120310TL4-M07; SNHQ 120310TR4-M07; SNHQ 120312TL4-M07; SNHQ 120312TR4-M07; SNHQ 120316TL4- |
