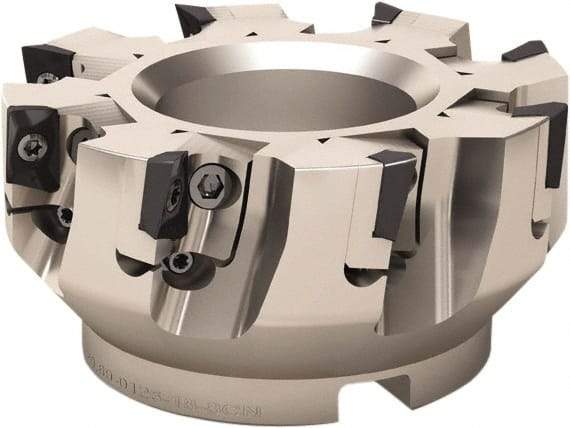

Seco - 12 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 63mm High, XO.. 1204 Insert Compatibility
Item #: 60158169
Brand: Seco
Model #: 57497
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | XO.. 1204 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -4 |
| Rake | Negative |
| Hub Diameter (mm) | 130.00 |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum RPM | 7300 |
| Complete Insert Compatibility | XOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07 |
