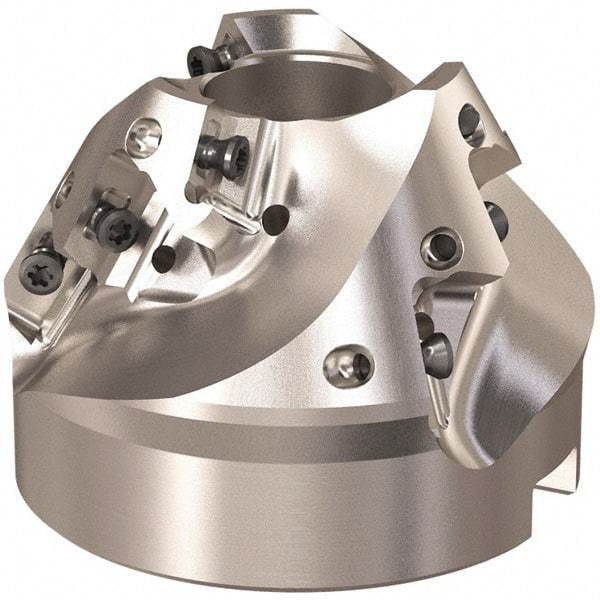

Seco - 2.638" Cut Diam, 1" Arbor Hole, 1.102" Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 9 Inserts, XO.. 1204 Insert, Right Hand Cut, 3 Flutes, Through Coolant, Series R220.49
Item #: 60163409
Brand: Seco
Model #: 45998
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.6380 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 60 |
| Overall Height (Decimal Inch) | 1.9680 |
| Insert Compatibility | XO.. 1204 |
| Series | R220.49 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 1.1020 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Hub Diameter (Decimal Inch) | 2.4400 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Maximum Body Diameter (Decimal Inch) | 1.3740 |
| Maximum RPM | 13000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | XOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07; XOEX 120420FR-E06; XOEX 120424R-M07; XOEX 120431FR-E06; XOEX 120431R-M07; XOEX 120440R-M07; XOEX 120450R-M |
