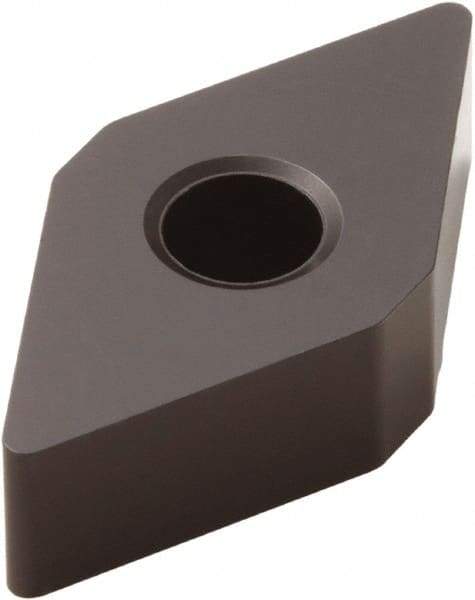

Seco - DNMA432 Grade TK1001 Carbide Turning Insert - Diamond, 1/2" Inscr Circle, 0.188" Thick, 1/32" Corner Radius
Item #: 60175767
Brand: Seco
Model #: 69632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | TK1001 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | DNMA 432 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | H |
| Shape | Diamond |
