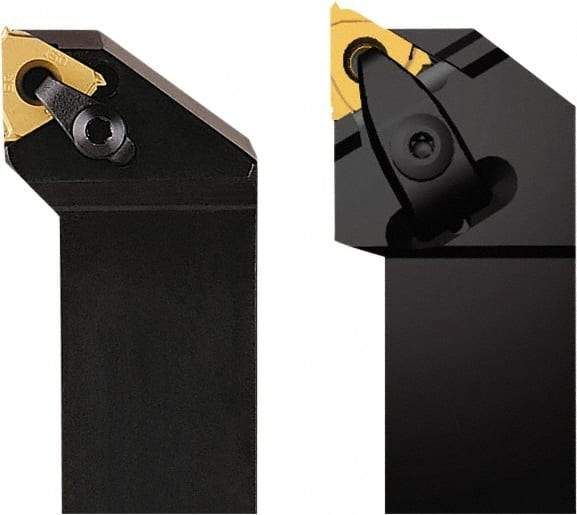

Seco - External Thread, Right Hand Cut, 16mm Shank Width x 16mm Shank Height Indexable Threading Toolholder - 100mm OAL, 16ER Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 60755469
Brand: Seco
Model #: 25276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Insert Compatibility | 16ER |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6300 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8660 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
