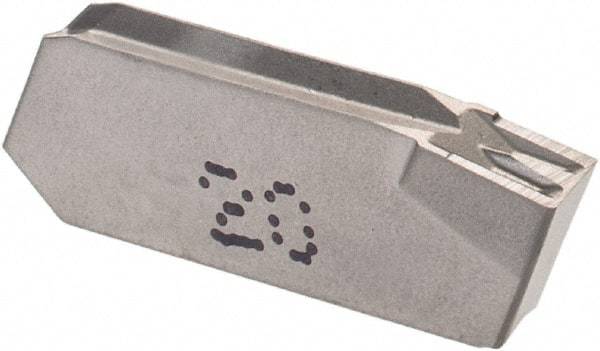

Iscar - 38GIM Grade IC20, 3mm Cutting Width Carbide Grooving Insert - Right Hand, 0.25mm Corner Radius, Uncoated
Item #: 60762416
Brand: Iscar
Model #: 6400407
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 38 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Slitting |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| ISO Number | GIM 3-8RA |
| Manufacturers Catalog Number | GIM 3-8RA |
